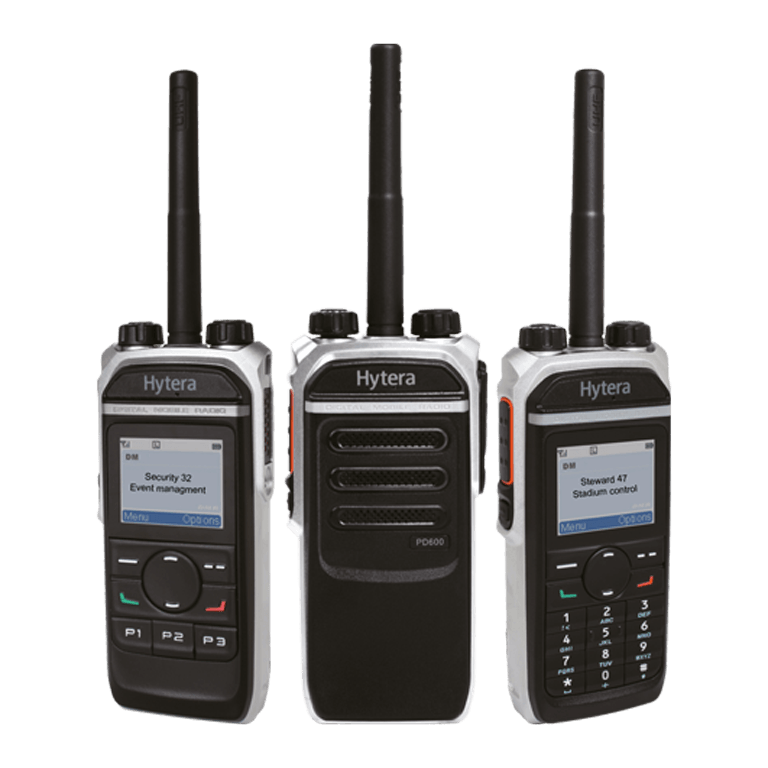

Hytera PD6 Series
Rugged Digital Radio

Applications

Construction, Education, Hospital, Hotel, Security, Factories, Farming and Forestry

Highlights

• GPS Positioning (Factory Option)
  The built-in GPS module in the PD6 series G supports GIS applications.
• Smaller, Sleeker, Lighter
  The PD6 Series has a light weight PC & Metal frame design. P602 is 4.7 x 2.13 x 1.1 inches weighing 10.23oz, PD662 / PD682 is 4.8 x 2.17 x 1.1 inches weighing 10.93oz.
• Rugged & Reliable
  Complies with MIL-STD-810 C/D/E/FromG standards and passes HALT (Highly Accelerated Life Test).

Features

• Wider Available Frequency Range
  Expanded frequency range of 400-527MHz.
• Dual Mode: Analog & Digital
  Dual mode (analog & digital) operation ensures a smooth analog to digital migration.
• Secure Communication
  Allows basic/advanced digital encryption and Scrambler feature in analog mode.
• Advanced Signaling
  Supports multiple advanced analog signaling modes, including DTMF Encode (PD682), HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.
• DMRA Data Service
  The data protocol is fully compliant to DMRA standard.
• Pseudo Trunk
  This virtual trunking feature allocates a free timeslot for urgent communications. This effectively enhances frequency efficiency and allows you to communicate in a timely manner in emergency situations.
• Man Down (Factory Option)
  When a user falls down, the radio can automatically alert others.
• Further Development Port
  The reserved side port allows users or any third party partner to further develop other helpful applications to extend radio functionalities.
• One Touch Call/Text
  Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.
• Supplementary Features
  PD6 Series can decode radio enable, radio disable, and remoter monitor as well as Priority Interrupt.
• Radio Priority-Based Interruption (Factory Option)
  Enables an administration or manager radio to interrupt calls for emergency or urgent communication.
• IP67 Protection
  The Ingress Protection reaches IP67 (6: Totally protected against dust; 7: Protected against the effects of immersion up to 1 m for 30 minutes). It’s the highest IP level for land-based wireless radio application.
• DMO True 2-Slot / DMRA Direct Mode
  In Directmode Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.
