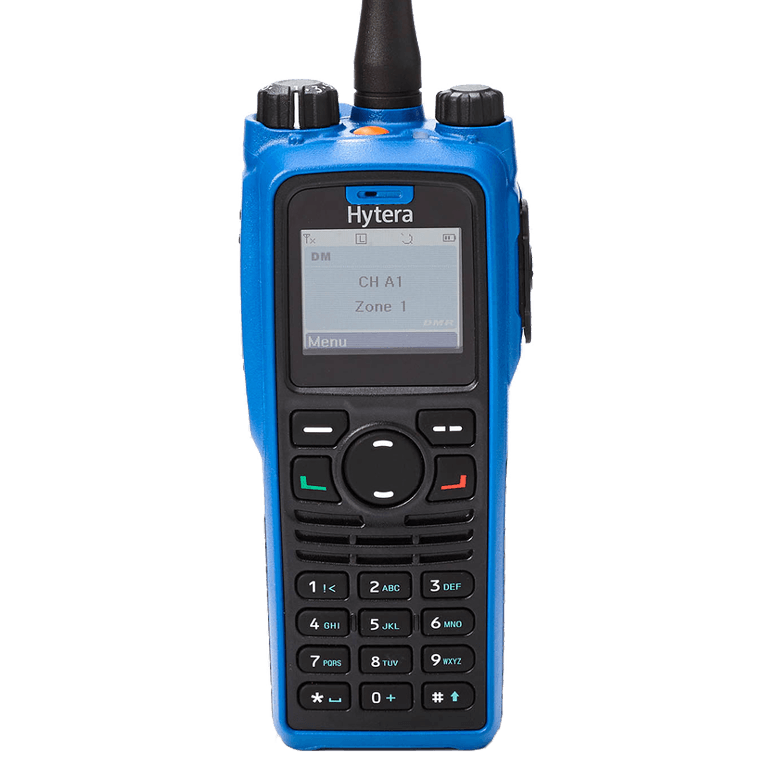

Hytera PD792Ex
Intrinsically Safe Digital Portable Radio

Applications

Oil & Gas, Utilities, Mining, Manufacturing, Firefighters, Refineries and Pharmaceutical

Highlights

• Improved PCB Circuit Layout & EMC Shielding
  To achieve such a high safety standard, Hytera PD792Ex adopts optimized distributed line design on PCB, minimizing the odds of circuit fault. All the key components on the PCB are covered with shield, and the space between lines, between components, between component and shield are properly seperated which translates to better EMC performance and less internal interference.
• Innovative Silicone Encapsulating
  Silicone encapsulant technology prevents the internal circuits from interface with air and liquid which effectively stops the intrusion of liquid, dust and harmful gas. The silicone encapsulating process is delicate and complicated. As a result, every single PD792Ex radio spends eight hours in the manufacture line.
• Innovative Electrostatic Free Design
  Hytera applies patent on electrostatic free design and dual-material molding technology in this intrinsically safe portable. The static dispersive material (blue) minimizes static accumulation on the surface, thus reducing the probability of static discharge on the radio. Meanwhile the robust material (black) maximizes the ruggedness of the enclosure.
• IP67 Protection
  The Ingress Protection reaches IP67 (6: Totally protected against dust; 7: Protected against the effects of immersion up to 1m for 30 minutes). It’s the highest IP level for land-based wireless radio application.
• Patent Battery Latch
  To disengage the battery from Hytera digital portables, the lock and bolt of the latch need to be moved along two different axes. Such a patented design ensures no disengagement of the battery pack from the main radio in case of dropping that might cause spark.

Features

• Environmentally Safe and High Reliability
  The PD792Ex is designed upon the strict requirements of European ATEX and North American FM standards. With certifications for ATEX, IECEX, the latest FM and CSA specifications, the radio works safely in most hazardous environments, even with the presence of hydrogen and dust particles. The overall design complies with the latest American Military Standard-MIL-STD-810G, which means it can bear the harshest environments like High/Low Temperature, High Humidity, Vibration, and Shock.
• Enhanced Safety
  The PD792Ex provides a dedicated emergency button. In case of any accident, a press on the button will trigger an alarm and initiate a pre-programmed voice call. Built-in Man-down, GPS and Lone Worker functions are also available with the digital portable.
• High-capacity and Safe Li-Ion Battery
  The PD792Ex has a high-capacity Li-Ion battery of 1800mAh with long shelf life of 17 hours under 5-5-90 duty cycle. The battery charging and discharging circuits are stringently designed to prevent overcharging or discharging causing high heat, which leads to unstable battery environments. In addition the battery cells are also encapsulated to redistribute single point heat buildup and also prevent air discharge.
• High Audio Quality and Assured Communication Based on DMR Technology
  Benefitted from the advantages of DMR digital technology, PD792 Ex provides higher audio quality and stable communication performance with 40% less battery consumption than analog radios. It provides better communication quality and enhanced privacy, and moreover reduces overall equipment costs.
• Easy to Use
  The PD792 Ex is very easy to use. It has a tough and highly readable LCD screen and an intuitive user interface. The large PPT button and channel knobs are useful for users wearing gloves. The ergonomic design and channel annunciation enhance the user experience.
