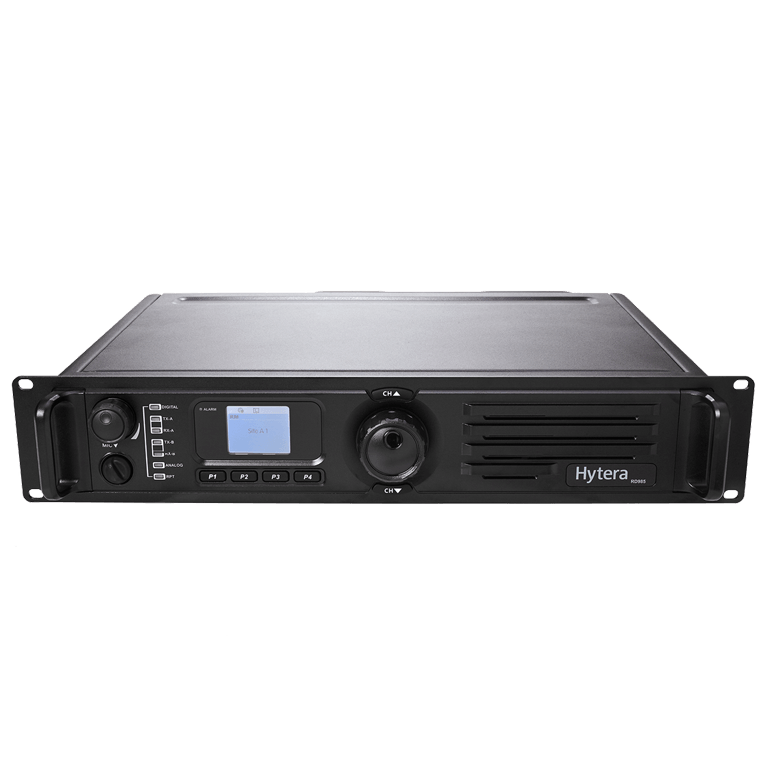

Hytera RD982
Powerful Digital Repeater

Applications

Public Safety, Utilities, Transportation, Manufacturing, Forestry, Security, Stadiums and Hospital

Highlights

• Dual Mode: Analog & Digital
  Dual Mode Analog and Digital channel auto switching, allowing efficient frequency sharing between Analog and Digital users and ensures a smooth transition to Digital technology.
• 16 Channels
  A maximum of 16 channels, allowing efficient radio network control at different scenarios. The channel change can be performed either via RDAC PC tools, via the repeater’s front panel channel knob and via the channel steering from the repeater’s rear port.
• Interoperability
  Two repeaters can be interconnected to provide interoperability between UHF and VHF. A single repeater can auto switch between Analog and Digital mode, allowing for efficient frequency sharing between Analog and Digital users and an easy digital migration.
• Heat Dissipation
  The unique cooling design combining a built-in heat pipe and a temperature-controlled fan ensures quick heat dissipation, enabling the repeater to operate efficiently even with full power.

Features

• 50W High Power
  Maximum repeating power of 50W, and thus increasing the system coverage with lesser setup equipments.
• Management Software
  With the management software, you can remotely monitor and diagnose a repeater. In addition, you can either record or play back the audio freely in digital mode.
• Innovative LED Design
  The innovative LED and the 2.0”HD color display would deliver the repeater status clearly.
• Expansion Ports
  This allows third parties to develop accessory and applications via front and rear port of the repeater. This is achieved via the signal streaming and pin control through the repeater ports.
• Dual Slot Digital Audio Streaming
  Streaming of both the voice slots via the rear port accessory pins, allowing third party for capability expansion.
• Continuous Wave Identification (CWID)
  Analog transmission of the repeater identification in Morse code format.
• Analog Scan
  Analog voice and signaling scan, allowing coverage of different analog voice users from various groups.
• Multiple Sites Via IP
  Network connection via the IP port of the repeater to form a private radio network to meet data and voice communication needs for wide-area coverage and dispersed locations.
• Advanced TDMA Technology
  The application of Time Division Multiple Access (TDMA) technology greatly enhances spectrum efficiency, which allows twice the users compared with that of traditional FDMA. Obviously, this can not only save infrastructure cost and frequency licenses, but also relieve the pressure of increasing shortage in spectrum resources.
• Repeater Diagnostic And Control (RDAC)
  Remote IP connection to monitor, diagnose, and control the repeater thus increasing maintenance efficiency. The Hytera developed RDAC is able to support multiple master network connections to allow the radio administrator to monitor multiple radio networks.
• Multi CTCSS/CDCSS Decode
  Decoding up to a maximum of 16 CDCSS/CTCSS codes in Analog channels allowing coverage for different Analog voice users from various groups.
• Repeater Access Management
  The repeater access control feature ensures a more secure network by preventing unauthorized users from accessing the radio network.
• Analog/Digital Telephone Interconnect (via DTMF signaling)
  Simplex voice communications between radio and telephone users. It allows a radio user to make a telephone call; or a telephone user to make either a Group or Private call to radio users. This feature utilizes the Commercial Off The Shelf (COTS) Analog Phone Patch boxes and a Plain Old Telephone Service (POTS) line to connect the Repeater to the Corporate Office Phone System (PBX) or Public Switched Telephone Network (PSTN).
• Analog Repeater Knockdown
  Repeater knockdown, that when activated via the repeater’s rear accessory pin, will disabled the transmit path of the repeater.
