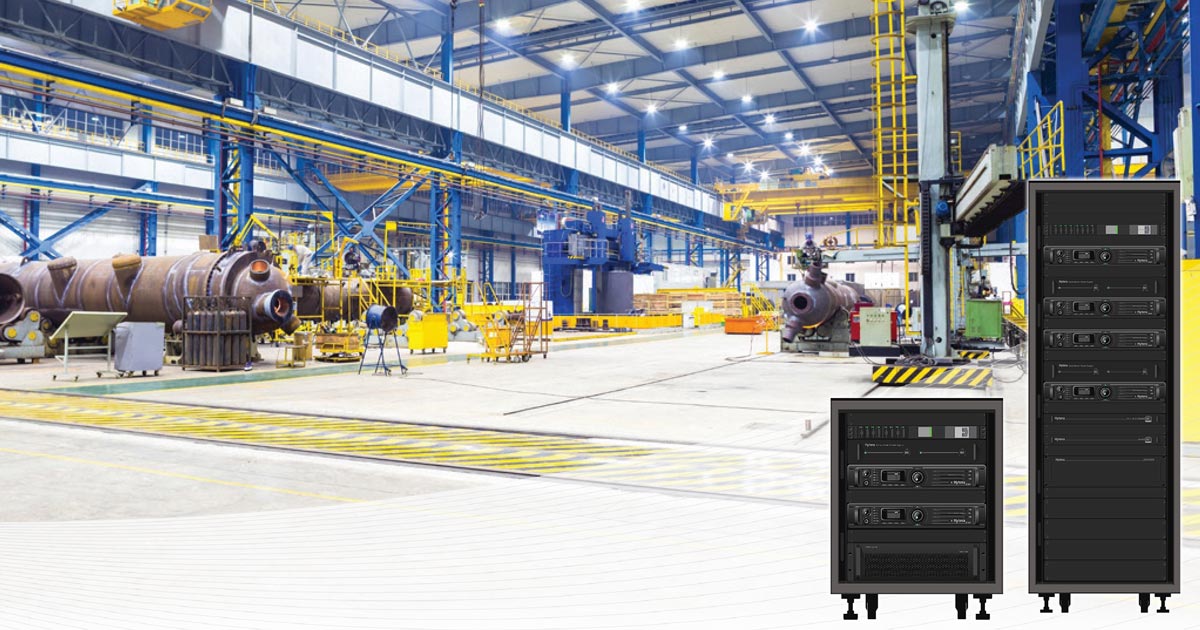

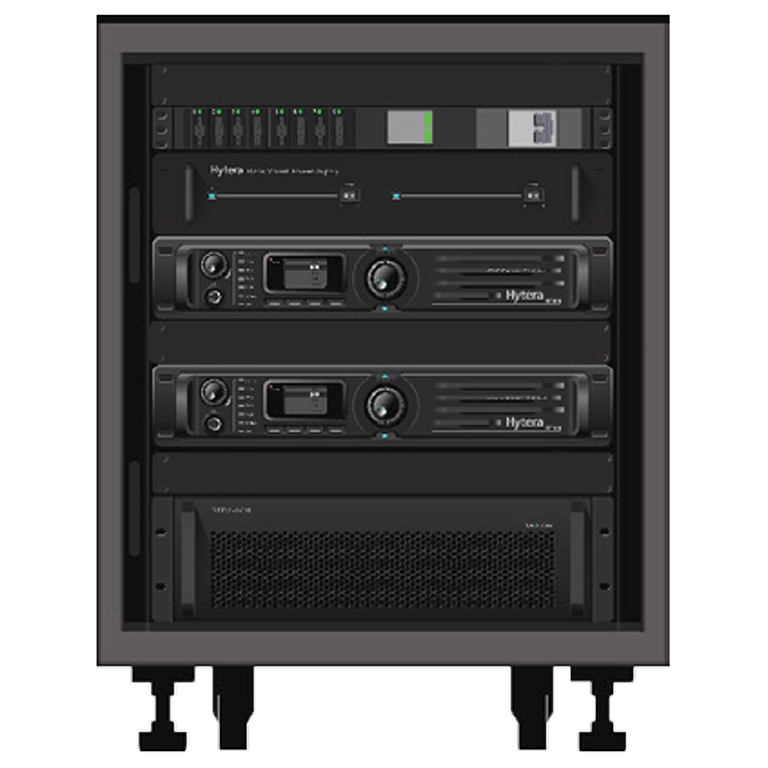

Hytera XPT
Decentralized Digital Trunking Solution

Applications

Hotel, Manufacturing, Education, Property Management, SMR Operator, Stadium and Hospital

Highlights

• Better Channel Utilization
  Based on the XPT protocol, the channels for voice and data can be extended up to 16 with mere software upgrade. Each channel can be customized to transmit voice and data or transmit data only.
• No Dedicated Control Channel
  There is no control channel in XPT and no license required for continuous transmitting. All channels can be used as traffic channels.
• Fast Deployment & Easy Configuration
  This system is easily deployed and configured since it is based on repeaters connected via a layer-2 switch. An easy migration from DMR Tier-II to XPT is provided by purchasing a license to upgrade the RD982S repeaters on the system. The subscribers would also need to be upgraded in firmware to enable the XPT feature. The available subscriber radios for the XPT Digital Trunking System are the PD6, PD7, X1, MD6, and MD7 Series.
• Channel Capacity
  The channel capacity of XPT system is 8 times as large as Hytera digital conventional communication system and 16 times as large as a conventional analog system.
• Emergency Alarm
  When an emergency call is activated by a radio, it will trigger an alarm that is sent to a defined radio or group of users in the XPT system.

Features

• Traffic Channel
  Each Single site XPT Digital Trunking System supports up to 8 carriers and 16 calls simultaneously.
• Data Features
  The system integrates audio and data application, such as GPS*, text message, telemetry*.
• Priority Call
  When an all call or emergency call is being initiated it will take priority over any other call being initiated at the same time.
• Group Call
  A radio can make a group call only when it has been predefined in the Home repeater.
• Remote Monitor
  Remote diagnostic and control (RDAC) program can be combined with XPT to monitor and diagnose the performance of system.
• Load Balance
  When initiating a call a radio monitors all the slots of repeaters until finding an idle traffic channel so that it can make a call. If none are found the radio will queue and continue to monitor all repeaters until an open slot is found.
• Fault Tolerance
  The XPT system is a distributed trunking system that can avoid interference caused by abnormal situations through fault tolerance, this allows the system to keep operating even when faults are detected.
• Reliable Structure
  The XPT Digital Trunking System has a multilevel fail-safe structure. This allows users to continue communicating smoothly until the equipment is serviced.
• LAN Switch Fail
  In the event of a LAN switch failure each repeater starts working as a two-channel trunking system.
• Router Fallback
  If the system is disconnected from the router, communication will continue using the resources within each site.
• Carrier Fail-safe
  If a repeater is down, the remaining carriers of the system will continue to operate as a trunking system with a temporary less in capacity
