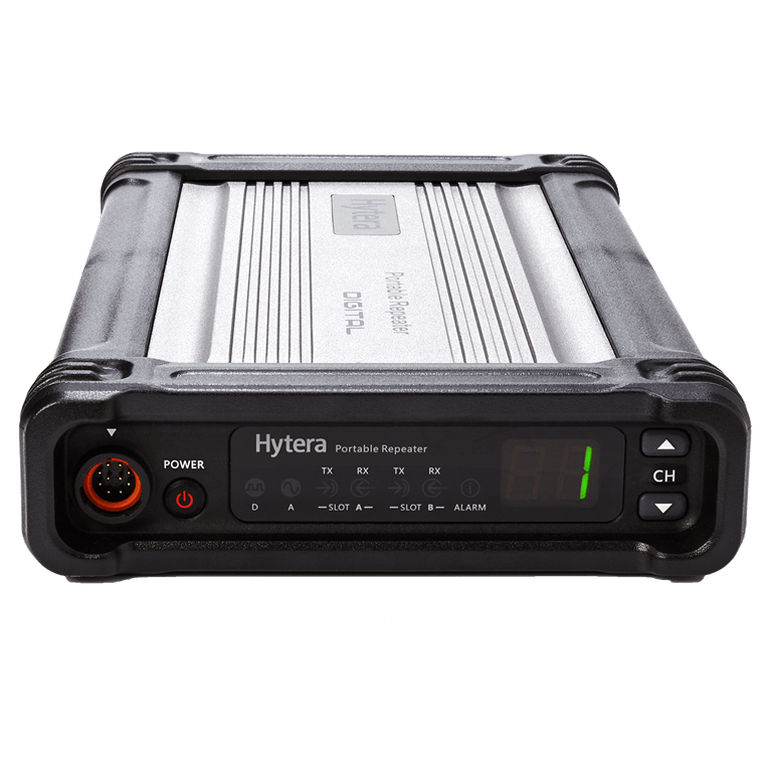

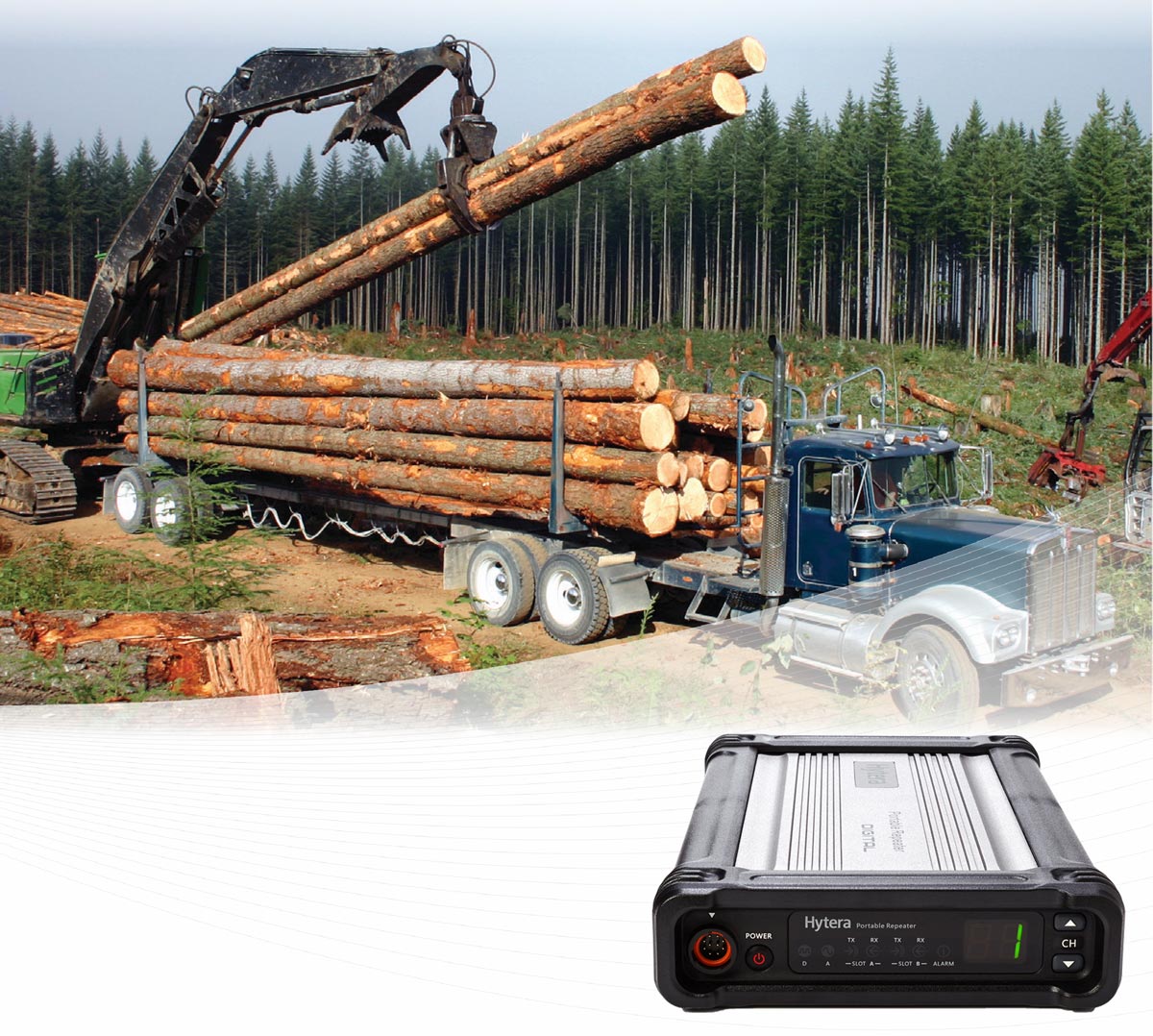

Hytera RD96X
Digital Portable Repeater

Applications

Public Safety, Forest Industry, Firefighters, Rescue Teams and Hotels

Highlights

• Slim and Portable
  With its compact design, the RD96X measures only 1 3/5th inches and weighs less than 6.62 lbs. The device can also have an optional embedded mini duplexer inside.
• External Batter
  With an optional external large-capacity battery, the device delivers an extended battery life to guarantee uninterrupted communications.
• Emergency Power Port
  The port allows for power connection in emergencies.
• IP67 Protection
  Compatible with the IP67 standard for water and dust protection, the device can operate properly when wet and dirty (tested in 1 meter of water for 30 minutes).
• Reliable and Durable
  Compatible with the American military standard MIL-STD-810 C/D/E/F/G and HALT verified, the device can perform excellently in harsh operating environments.

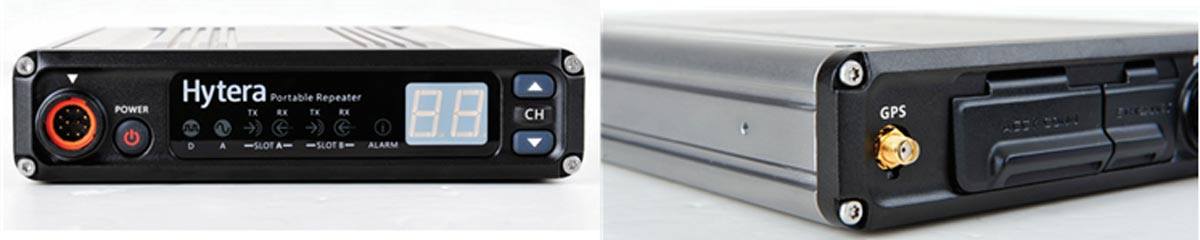

• User-friendly Panel
  The operating panel provides a wide range of status indicators, a button for channel adjustment, and a port for palm microphone or remote speaker microphone.

Features

• Smart Battery (optional)
  A 10Ah smart Li-Ion battery can support at least eight hours of work when working at 50% duty cycle and high TX power. Compatible with the smbus 1.1 standard, RD962 can monitor battery conditions such as estimated remaining capacity, used capacity percentage, and usage record. The device can also maximize the battery life through smart charge management, it can automatically recharge the battery for use anytime. Powered by three levels of battery protection, the device considerably enhances charging safety and reliably.
• Repeater Diagnostics and Control
  Through a PC-based application, the system administrator can remotely diagnose and control (connected to the Internet via an IP port) and local repeaters (via a USB port). Hytera’s RDAC software supports network access at multiple points and allows the administrator to monitor networked two-way radios.
• Voice Input/output via Dual Time Slots
  In digital mode, the device supports voice input and output via dual time slots and enables calls continuous call recording.
• Digital / Analog Smart Switching
  Back to back interconnection of digital & analog network can be achieved by wired or wireless IP, ensuring a smooth analog-to-digital transition and smart switching between networks.
• Flexible Networking
  By connecting geographically distributed repeaters that run at the same or different frequencies to form an IP-based and locationindependent wireless communication network, IP-based repeater interconnection allows mobile radios to obtain voice and data services while roaming.
• 16 Channels
  This product supports up to 16 channels. You can switch between channels using PC based RDAC software, the channel selector knob on the front panel, or the external interface on the repeater.
• Digital-analog Interconnection
  This feature enables two-way radios with digital and analog radio fleets, and digital and analog users to intercommunicate in different operating modes to guarantee users’ seamless transition from analog to digital capabilities.
• GPS
  The GPS module supports GPS data transmission and enables emergency command centers to monitor the location of a small mobile network in real time.
